Model LP7000 - Linear Polarisation Resistance Probe

Linear Polarisation Resistance Probe (2 Electrodes) for the 2” Access System

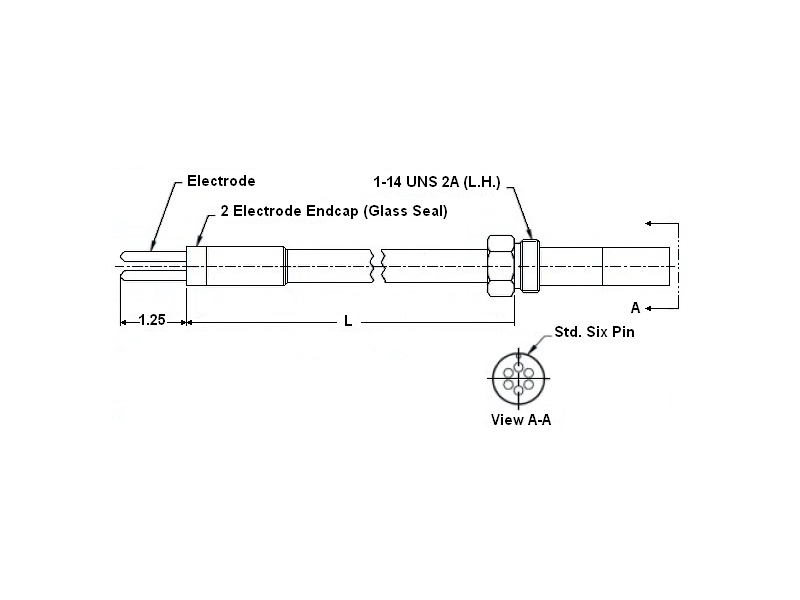

The probe assembly consists of an insertion rod with a hermetically sealed two-electrode endcap, a hollow plug nut, and a standard six-pin connector, which are all welded in place.

Model LP7000 is a fixed-length, linear polarisation resistance probe for use with 2 inch access systems

Model LP7000 is a fixed-length, linear polarisation resistance probe for use with 2 inch access systems. The probe assembly consists of an insertion rod with a hermetically sealed two-electrode endcap, a hollow plug nut, and a standard six-pin connector, which are all welded in place.

The hollow plug nut on the probe screws into the hollow plug of the access system. This allows the probe to be installed in the process, using a retriever tool and service valve, without process shutdown.
