Electrical Resistance Probe Adjustable Length with ¾” NPT Pipe Plug, Cylindrical Element and Non-Metallic Probe Body

The compression fitting allows the probe to be inserted into the process to the required length.

Model ER3110 is an adjustable-length, electrical resistance probe with a ¾” NPT compression fitting and a non-metallic probe body

Model ER3110 is an adjustable-length, electrical resistance probe with a ¾” NPT compression fitting and a non-metallic probe body. The compression fitting allows the probe to be inserted into the process to the required length. The non-metallic body provides electrical isolation between the probe element and the vessel.

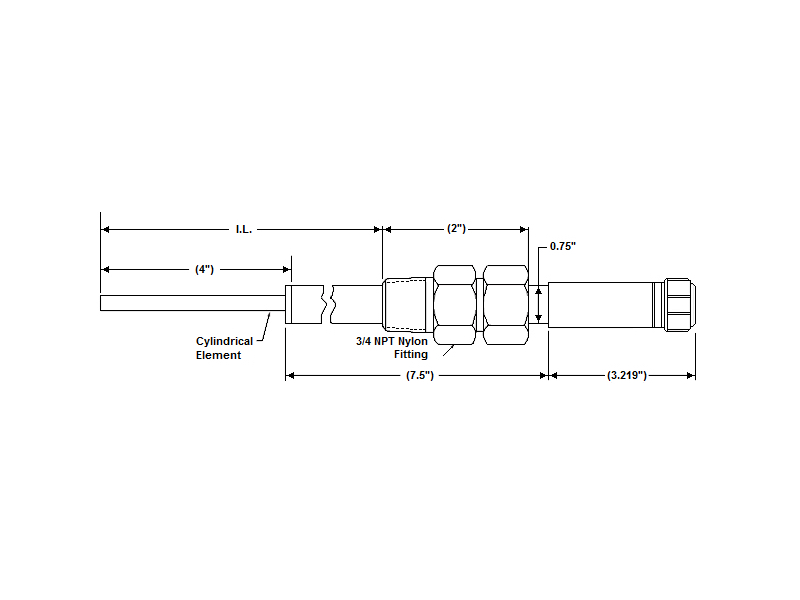

This can be useful in systems where galvanic problems and stray currents may cause accelerated corrosion of the probe element, causing an over-estimation of the system's corrosion rate. The probe requires process isolation or process shutdown to install and a threaded pipe fitting to mount. The probe assembly consists of an epoxy-filled insertion rod with an element, a 6-pin connector, and a ¾” compression fitting.

The insertion length (I.L.) is calculated to the end of the element. The maximum insertion length (I.L.) is 9.5". Several standard elements are available to meet your specific needs.
